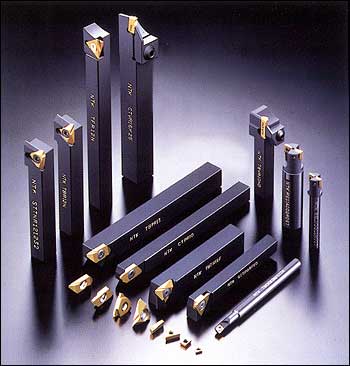

• SS Series Tooling for CNC Lathes

- NTK SS Tooling offers toolholders and inserts for front and back turning, gooving and cut-off, in inch and metric sizes.

• SS Series Tooling Applications

- Workpieces: small parts for automobiles, watches, cameras, medical, hydraulic and office automation equipment, etc.

• Features of SS Tooling

- Unique back turning designed inserts and toolholders
- Available in KM3 micro-grain carbide or XT3 cermet grades
- Sharp cutting edges for reduced cutting pressure
- KM3 micro-grain carbide excels at low cutting speeds needed to machine small parts
- Strong stable clamping system for maximum rigidity
- Indexable inserted boring bar for (.197) minimum I.D. bore

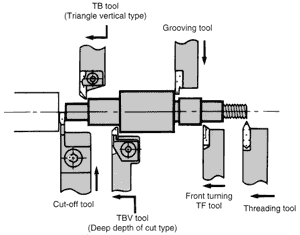

Tooling example for gang tooling applications

Tooling example with tools classified by applications
